Product Overview

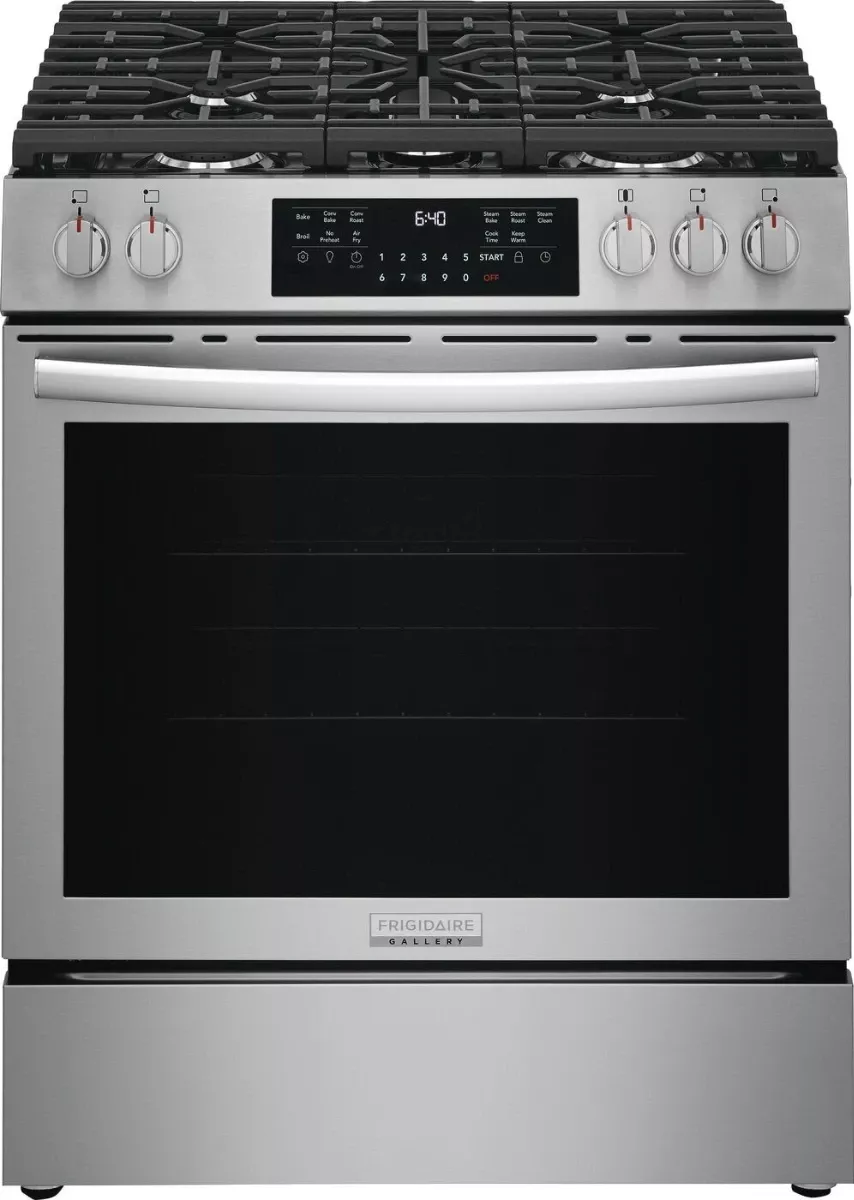

The flexible five burner cooktop includes a powerful 18,000 BTU Quick Boil Burner and a center oval burner with an integrated cast iron griddle. This range also features backlit LED knobs, our premium touch screen digital control panel and our fingerprint resistant, Smudge-Proof® Stainless Steel finishes.
Get Over 15 Ways To Cook With Total Convection
Total Convection gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate and more!
Start Baking Immediately With No Preheat
Eliminates time wasted waiting on your oven to heat up – simply place your food in the cold oven and get to meal time, in no time.
Deliver All Of The Flavor And None Of The Guilt With Air Fry
Air Fry allows you to make healthier and delicious meals for the entire family, right in your oven.
Flexible Five Burner Cooktop
This cooktop has five burners designed to handle all of your cooking needs, including a powerful 18,000 BTU Quick Boil Burner and a center oval burner with an integrated cast iron griddle.
Useful Documents
Right To RepairProduct Specification SheetComplete Owner’s GuideQuick Start GuideInstallation Instructions
Specifications
General Specs |
|
| Color | Stainless Steel |
| Color/Finish Name | Smudge-Proof® Stainless Steel |
| Handle Color | Smudge-Proof® Stainless Steel |
| Total Capacity (cu. ft.) | 6 |
| Number of Oven(s) | Single |
| Fuel Type | Natural Gas |
| Door Panel Type | Glass |
| Burner Type | Sealed |
| Range Type | Slide-In |
| Number of Elements/Burners | 5 |
| Cooktop Surface Style | Burner Grate, Griddle |
| Grate Material | Cast Iron |
| Oven Cleaning Method | Self Cleaning |
| Total Number Of Rack Positions | 8 |
| Oven Features | Automatic Convection Conversion, Broiler in Oven, Dehydrator, Delay Bake/Start, Hidden Bake Element, Keep Warm, Safety Lock, Oven Temperature Probe, Sabbath Mode, Steam Oven, Temperature Control, Time Bake, Proofing Mode |
| Cooktop Features | Bridge Element, Control Lockout, Continuous Grate, Griddle Included, Digital Display |
| Air Fry | Yes |
| Induction Cooking | No |
| Convection Cooking | Yes |
| Drawer Type | Storage |
| Appliance Fit Width (in.) | 30 |
| Width (in.) | 30 |
| Height (in.) | 36.38 |
| Depth (in.) | 28.5 |
| Depth w/Door Open 90 Degrees (in.) | 47.25 |
| Cut Out Depth (in.) | 25 |
| Cut Out Width (in.) | 30 |
| Cut Out Height (in.) | 36 |
| Manufacturer Warranty | 1 Year Parts & Labor |
| ADA Compliant | Yes |
| Collection | Gallery® |
| Series | Gallery® |
| Voltage | 120 |
| Amp | 12 |
