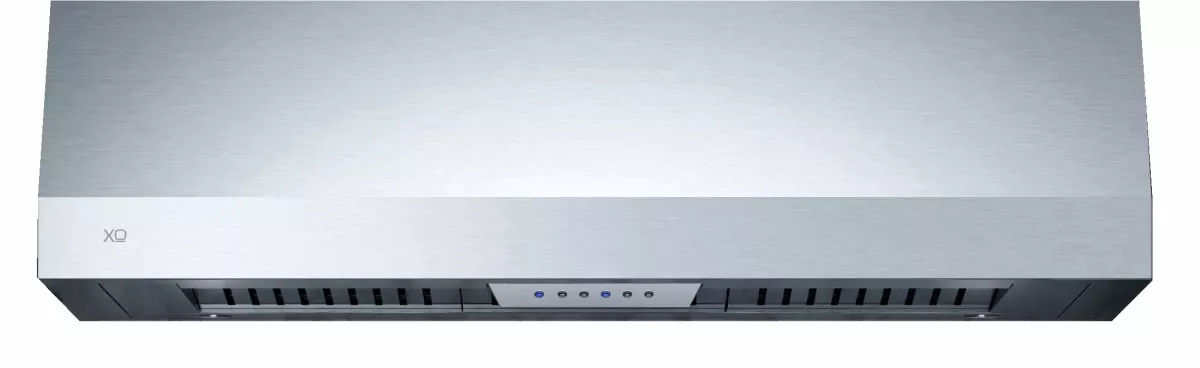

Product Overview
Backlit Electronic 4 Speed Control with Power Boost
CCC Code Compliance Control – permanently set blower to 395 or 600 CFM to meet local codes
High Efficiency 3000K LED lights brightly illuminate the cooktop
Dishwasher Safe Pro Style Stainless Baffle Filters for efficient filtration
5 Minute Delay Shutoff Timer
6″ Vertical Duct
Made In Italy
2 year limited parts and labor warranty for the original owner
Useful Documents
ManualSpecification Sheet
Specifications
General Specs |
|
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Under Cabinet |
| Ventilation Type | Ducted |
| Ventilation Direction | Vertical/Horizontal |
| Vent Location | Custom |
| Grease Filter Type | Baffle |
| Duct Size (in.) | 6″ Diameter |
| Bulb Type | LED |
| Sones Rating | 1 – 6.5 |
| Noise Level (Sones) | Standard – (High), Moderate – (Medium), Quiet – (Low) |
| Maximum CFM | 600 |
| Range Hood Features | Light, Removable Grease Filter |
| Smart Compatible | No |
| Filter Indicator Light | No |
| Fan Speed Options | 4 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 42 |
| Width (in.) | 42 |
| Height (in.) | 11 |
| Depth (in.) | 22 |
| Height Above Cooktop | 27 – 32 |
| Height Above Cooktop Centimeter | 68.58 – 81.28 |
| Shipping Width (in.) | 40 |
| Shipping Depth (in.) | 24 |
| Shipping Height (in.) | 18 |
| Product Weight (lbs.) | 38.5 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Collection | Fabriano |
| Manufacturer Warranty | 2 Year Limited |
| Voltage | 120 |
| Amp | 3.6 |
| Frequency | 60 |
